Emin Flex

Boiler Hose

Application: Heat exchanger in boilers.

Material Properties:

Hose: AISI 316L Stainles Steel Hose: AISI 316L - 304 Stainles Steel

Fitting: AISI 316 - 304 Stainles Steel with internal or external thread. Length: Acc. to customer requirements

PRODUCT

Sheet

Wide

W.T

(T mm)

Corr./mt

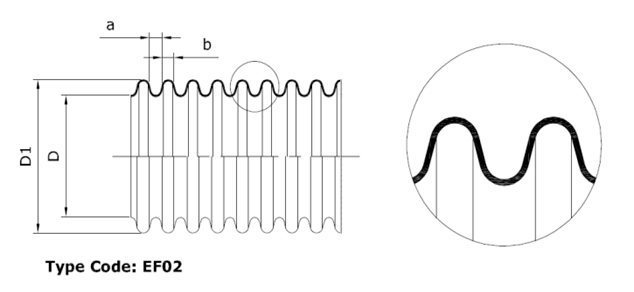

b

(mm)

a

(mm)

D

(mm)

D1

(mm)

Tolarence

Min

Bending R

 Op. Pr.

Un braided

(Bar)

Operating

Pressure

(Bar)

Suface Area

per meter

mm^2/m

Min. Section

Area

(mm^2)

Hacim/m

m^3/m

(lt/m)

Weight

(kg/m)


DN16 W.P. 63 0,18 217 1,85 2,75 16,60 21,40 ±0,25 25 195 11 0,100 216,42 0,2835 0,141
DN20 W.P. 77 0,18 196 2,10 3,00 20,40 26,10 ±0,30 30 225 9 0,137 326,85 0,4246 0,194
DN20 W.P. 77 0,20 182 2,20 3,30 20,60 26,10 ±0,30 30 225 10 0,121 333,29 0,4282 0,190
DN25 W.P. 94 0,20 189 2,20 3,10 25,60 31,60 ±0,30 35 260 7 0,149 514,72 0,6424 0,234
DN25 W.P. 94 0,30 190 2,00 3,20 25,20 31,60 ±0,30 35 260 11 0,164 498,76 0,6335 0,386
DN32 W.P. 122,3 0,22 175 2,30 3,40 33,90 40,90 ±0,40 40 300 4 0,214 902,59 1,0986 0,370
DN32 W.P. 122,3 0,30 161 2,50 3,70 33,30 40,20 ±0,40 50 300 10 0,190 870,92 1,0607 0,448
